Posillipo F75

Pendant Lamp

Attached documents


Posillipo Catalog

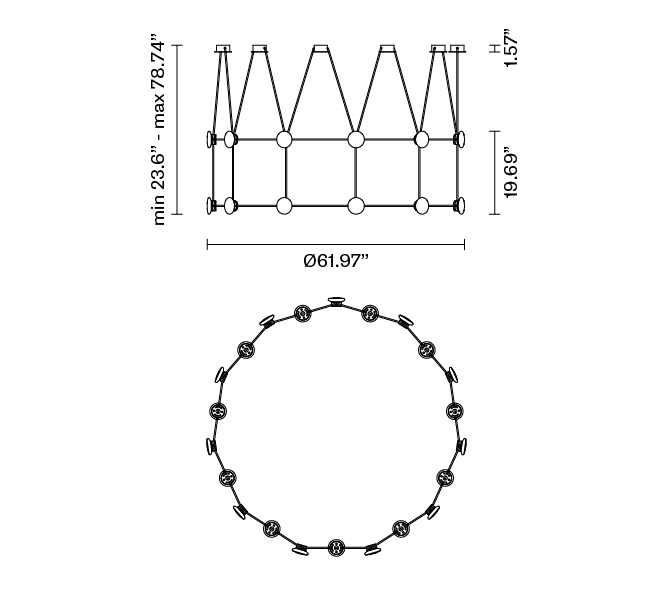

61.97" Pendant with Optional Accessory Extension Rows

Versions

62

62" - Champagne - 3000K - Pendant

F75 A71 YA02 16

Tech specs

Voltage Driver Dependent
Light source 22x 3W
Lumens 4312
Color temperature 3000K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure
Options Extension rows

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)
62

62" - Champagne - 2700K - Pendant

F75 A72 YA02 16

Tech specs

Voltage Driver Dependent
Light source 22x 3W
Lumens 4312
Color temperature 2700K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure
Options Extension rows

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)
62

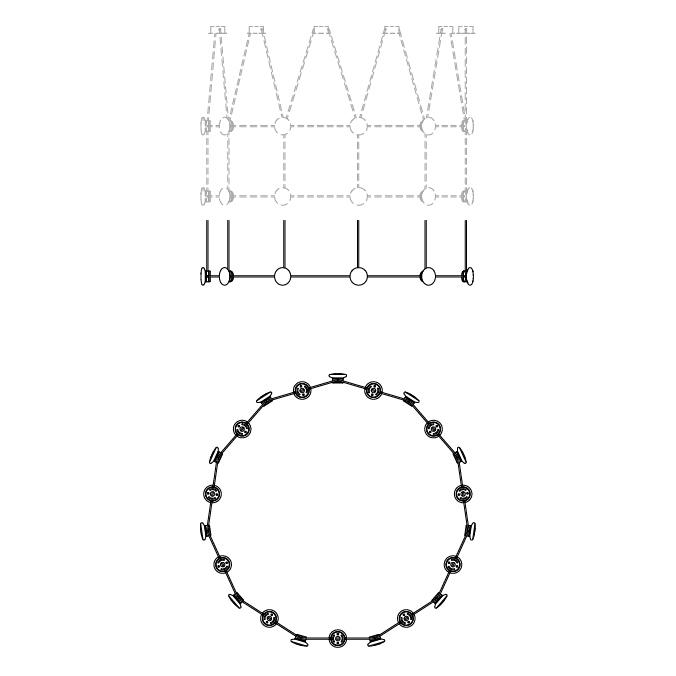

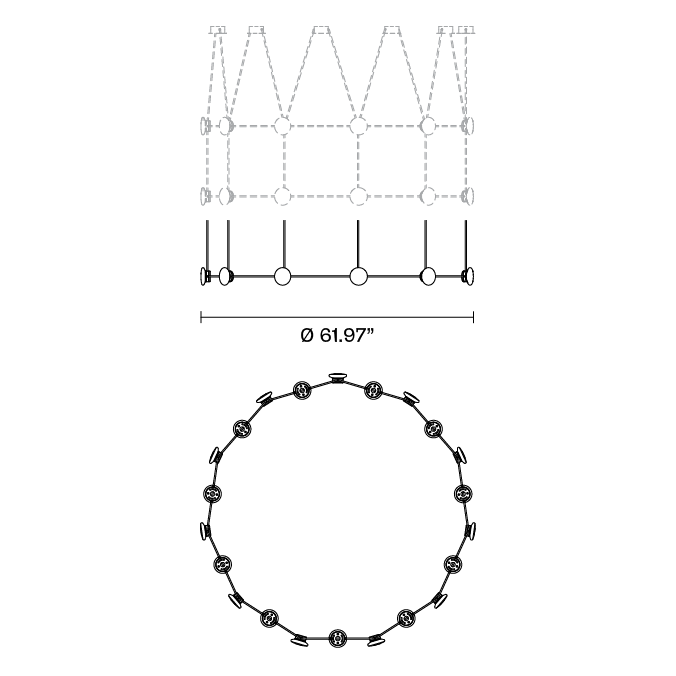

62" - Champagne - 3000K - Extension Module

F75 L71 YA02 16

Tech specs

Voltage Driver Dependent
Light source 11x 3W
Lumens 2156
Color temperature 3000K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure
Options

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)
62

62" - Champagne - 2700K - Extension Module

F75 L72 YA02 16

Tech specs

Voltage Driver Dependent
Light source 11x 3W
Lumens 2156
Color temperature 2700K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure
Options

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)

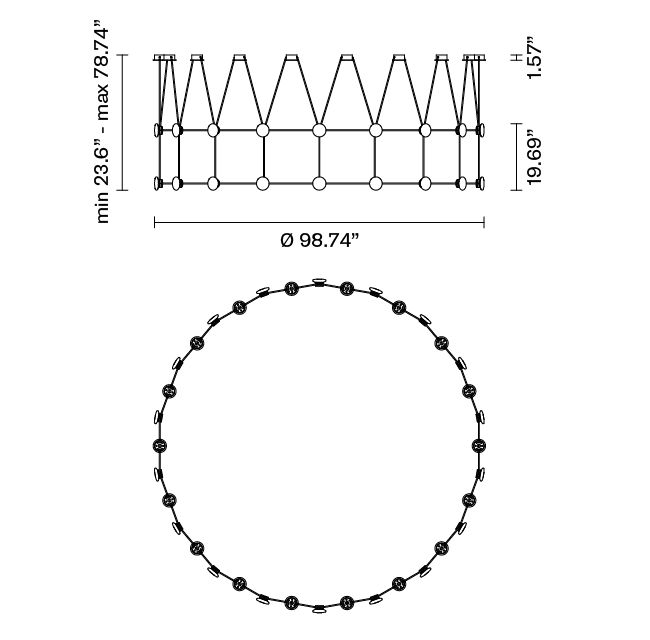

98.74" Pendant with Optional Accessory Extension Rows

Versions

99

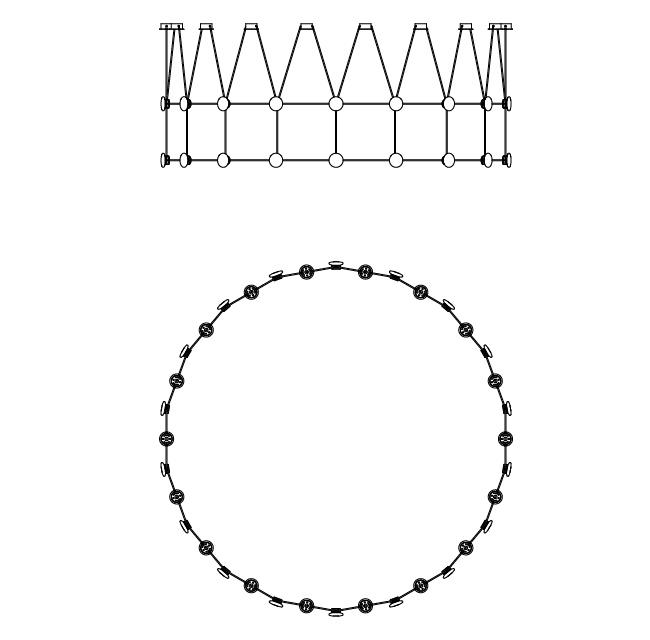

99" - Champagne - 3000K - Pendant

F75 A81 YA02 16

Tech specs

Voltage Driver Dependent
Light source 36x 3W
Lumens 7056
Color temperature 3000K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure
Options Extension rows

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)
99

99" - Champagne - 2700K - Pendant

F75 A82 YA02 16

Tech specs

Voltage Driver Dependent
Light source 36x 3W
Lumens 7056
Color temperature 2700K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure
Options Extension rows

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)
99

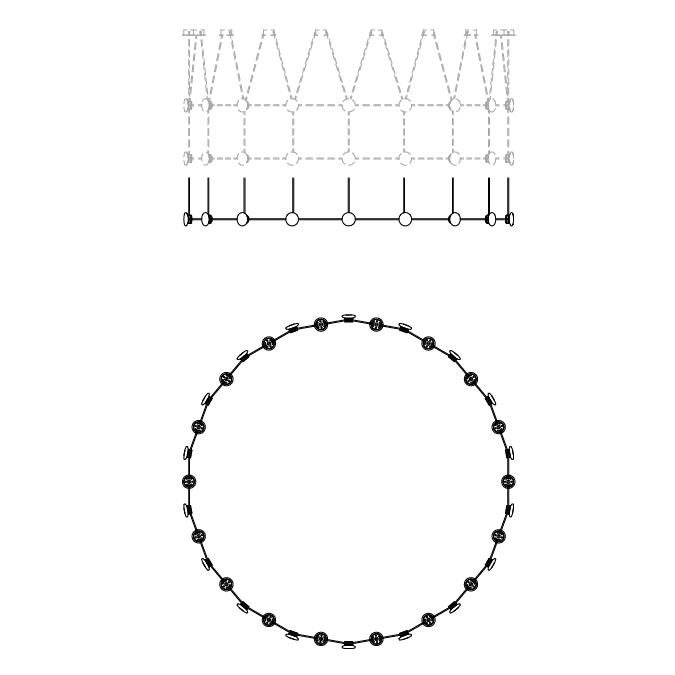

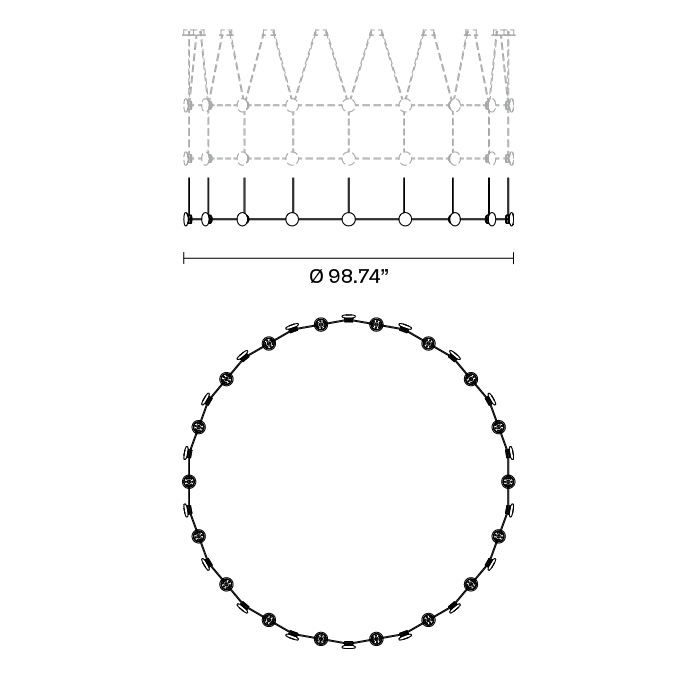

99" - Champagne - 3000K - Extension Module

F75 L81 YA02 16

Tech specs

Voltage Driver Dependent
Light source 18x 3W
Lumens 3528
Color temperature 3000K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)
99

99" - Champagne - 2700K - Extension Module

F75 L82 YA02 16

Tech specs

Voltage Driver Dependent
Light source 18x 3W
Lumens 3528
Color temperature 2700K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)

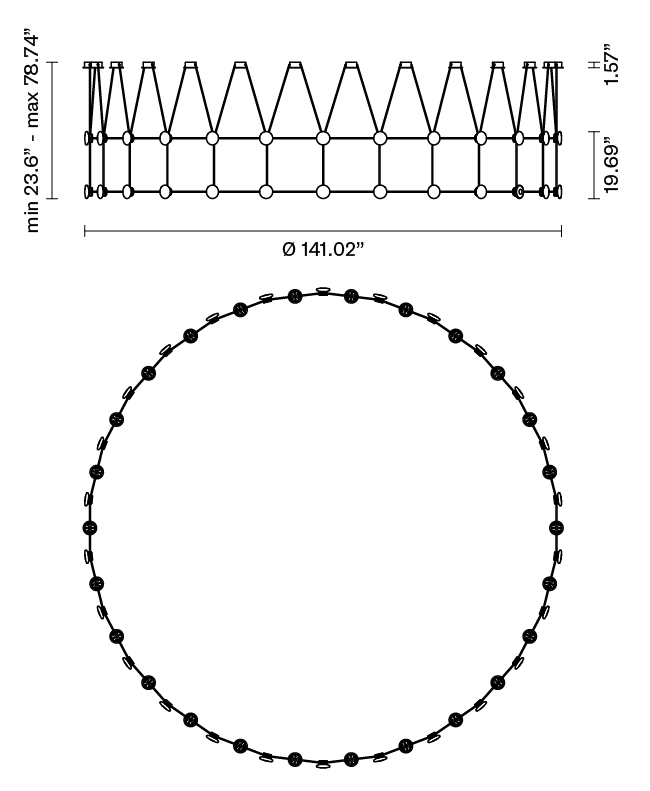

141.02" Pendant with Optional Accessory Extension Rows

Versions

141

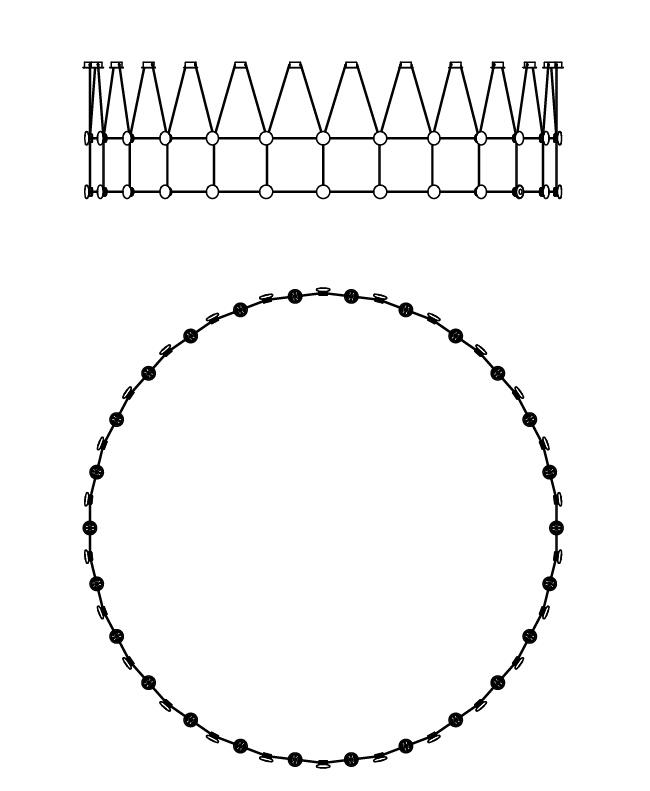

141" - Champagne - 3000K - Pendant

F75 A91 YA02 16

Tech specs

Voltage Driver Dependent
Light source 52x 3W
Lumens 10192
Color temperature 3000K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure
Options Extension rows

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)
141

141" - Champagne - 2700K - Pendant

F75 A92 YA02 16

Tech specs

Voltage Driver Dependent
Light source 52x 3W
Lumens 10192
Color temperature 2700K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure
Options Extension rows

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)
141

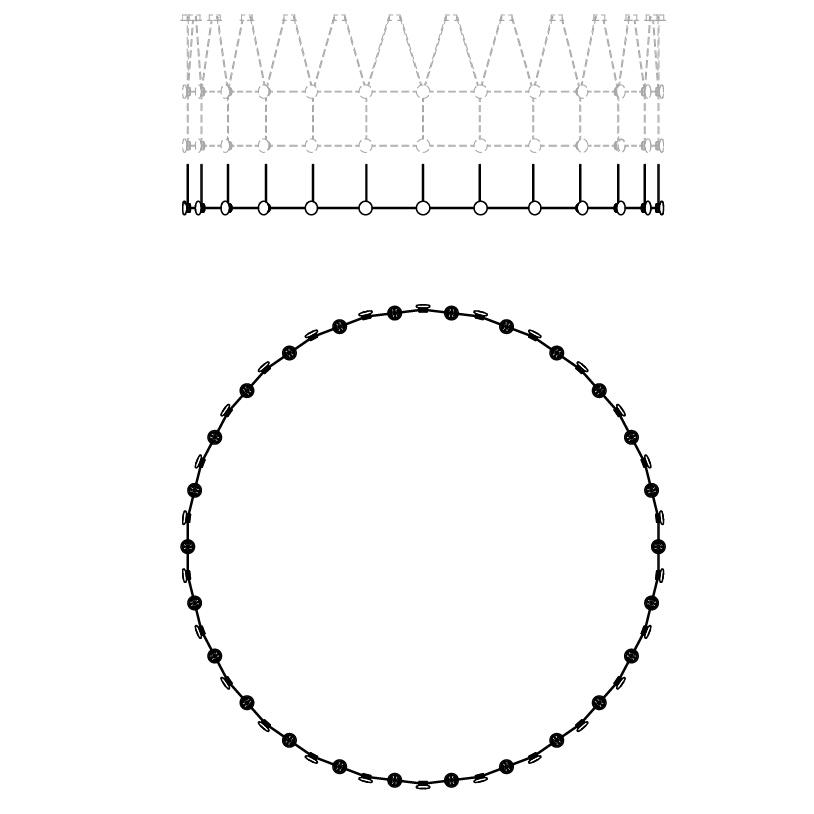

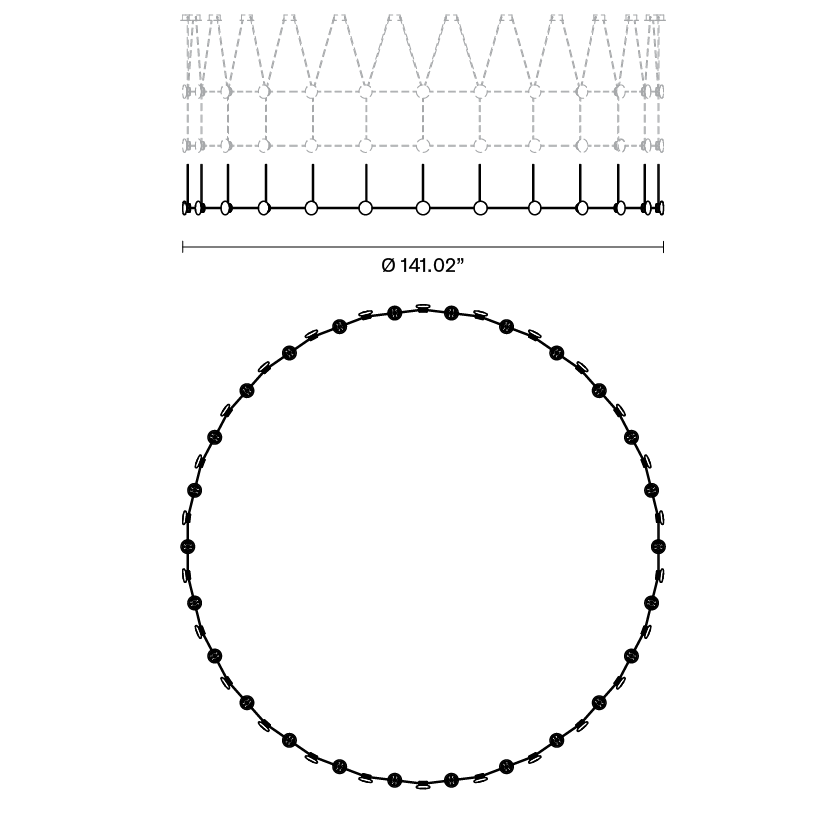

141" - Champagne - 3000K - Extension Module

F75 L91 YA02 16

Tech specs

Voltage Driver Dependent
Light source 26x 3W
Lumens 5096
Color temperature 3000K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)
141

141" - Champagne - 2700K - Extension Module

F75 L92 YA02 16

Tech specs

Voltage Driver Dependent
Light source 26x 3W
Lumens 5096
Color temperature 2700K
CRI 90+
Dimmable Driver Dependent
IP Rating IP40
Materials Blown glass diffusers metal structure

Downloads

Data Sheet (pdf) Photometric (ies) Installation Instructions (pdf) 2D Draw (dwg) 3D (CAD, Revit, Sketchup)
